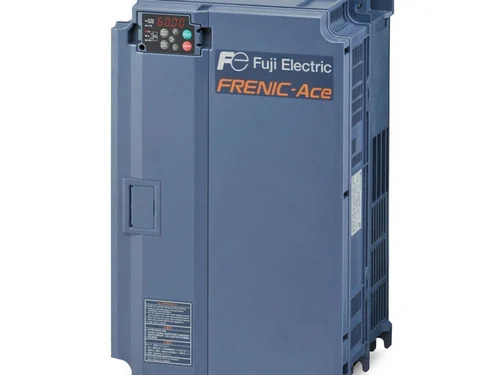

Fuji Drives, Ace Series-FRN0168E2S-4GBX

Name: Fuji Drives, Ace Series-FRN0168E2S-4GBX
Brand: LADDER LOGIX
Price: 286500 INR
Availability: InStock

Price 286500 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji Drives, Ace Series-FRN0168E2S-4GBX Specification

Insulation Material
PVC

Power Factor
0.98

Mounting Type
Wall Mount

Operating Temperature
-10C to +50C

Feature
Digital Display, Overload Protection

Humidity %
95% (Non-Condensing)

Efficiency
97%

Overheating Protection
YES

IP Rating
IP20

Surface Finish
Powder Coated

Connector Type
Screw Terminal

Shape
Rectangular

Product Type
AC Drive

Application
Industrial Automation

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480V AC

Energy Consumption
High Efficiency

Output Type
Three-Phase

Color
Grey

Dimension (L*W*H)
380 x 350 x 280 mm

Weight
44 kg

Phase
Three Phase

Input Voltage
380-480V AC

Size
Standard

No Of Poles
3

Connection Type
Panel Mount

Material
Metal

Model
Ace Series-FRN0168E2S-4GBX

Control Method
Vector Control / V/F Control

User Interface
Keypad with LCD Display

Maximum Output Current
168A

Storage Temperature
-20°C to +65°C

Programming
User Programmable via Software

Communication Interface
RS-485 Modbus

Noise Level
<65 dB

Altitude
Up to 1000 m (without derating)

Safety Features
Short Circuit, Overcurrent, Ground Fault, Undervoltage Protection

Cooling Method
Forced Air Cooling

Motor Compatibility
Asynchronous and Synchronous Motors

Braking Unit
Built-in

About Fuji Drives, Ace Series-FRN0168E2S-4GBX

Experience the lavish performance of the Fuji Drives, Ace Series-FRN0168E2S-4GBX-a highly acclaimed and in-demand variable frequency drive meticulously crafted for noble industrial automation. With an impressive maximum output current of 168A and advanced vector control/VF control, this unit delivers lustrous efficiency up to 97%, making it a premium choice among industrial exporters, suppliers, traders, and wholesalers in India. Its sturdy build features a metal, rectangular body with IP20 protection, a digital LCD keypad, and multiple safety and communication interfaces-an order that elevates your operations to the next level of excellence.

Versatile Usage & Premium Features

The Fuji Drives Ace Series-FRN0168E2S-4GBX is ideally suited for industrial automation, efficiently driving pumps, fans, and general-purpose machinery. Its noble vector and V/F control methods cater to both asynchronous and synchronous motors. With special features such as built-in braking, digital LCD display, user-programmable functions, and advanced safety protections, this drive fits demanding environments. Highly sought after for its durability, it ensures seamless operation in industrial settings where high performance and robust control are essential.

Payment, Sample Availability & Stock Readiness

Fuji Drives Ace Series-FRN0168E2S-4GBX ensures premium service with a Stock Ready approach, enabling swift shipment for bulk or urgent orders. Flexible payment terms are available to accommodate a range of clients. Interested buyers can request samples under a transparent sample policy, allowing thorough evaluation before making a major commitment. As a trusted supplier, trader, and wholesaler in India, we guarantee careful packaging and prompt delivery, ensuring your premium VFD is received in excellent condition.

Power Supply
380-480
Type of Product
Variable Frequency Drive
Model No
FRN0168E2S-4GBX
Current
168 / 150 / 112A
Capacity
90 / 75 / 55 Kw
Country of Origin
Japan
Phase
Three Phase
Series
Frenic Ace
Output Frequency (Hz)
25-500
Weight
33 Kg
Dimension
361.2N615N276 mm
Overload Capacity
150 % per 1 min
Digital Input
5
Analog Input
1
Digital Output
2 - transistor
Application
pumps / fans / general purpose
Operation Temperature
-10_+40
Enclosure
IP00
Relay Output
1
Analog Output
2

FAQ's of Fuji Drives, Ace Series-FRN0168E2S-4GBX:

Q: How does the Fuji Drives Ace Series-FRN0168E2S-4GBX enhance industrial automation?

A: By integrating advanced vector and V/F control, this drive optimizes motor performance, increases energy efficiency, and provides robust overload and safety protections, making it ideal for automation and critical applications.

Q: What special features distinguish the Ace Series-FRN0168E2S-4GBX from other variable frequency drives?

A: This model offers a keypad with LCD display, built-in braking unit, RS-485 Modbus communication, IP20 protection level, high efficiency, and is compatible with both asynchronous and synchronous motors, along with extensive safety features.

Q: Where can the Fuji Drives Ace Series-FRN0168E2S-4GBX be used most effectively?

A: It is most effective in industrial applications such as automation systems, pumps, fans, and general machinery where precise motor control and reliability are essential.

Q: What payment options and sample policies are available for this drive?

A: Various payment terms are offered for customer convenience. Samples are available upon request under a clear policy, allowing evaluation before final order placement.

Q: How can users benefit from the product's user programmable settings?

A: User-programmable settings allow you to tailor operations for specific industrial processes, ensuring optimal performance and adaptability for diverse applications.

Q: What is the typical process for ordering and receiving shipment of this VFD in India?

A: Once an order is placed, products are promptly shipped from ready stock, with secure packaging to ensure the drive reaches you in premium condition. Detailed coordination ensures timely delivery.
