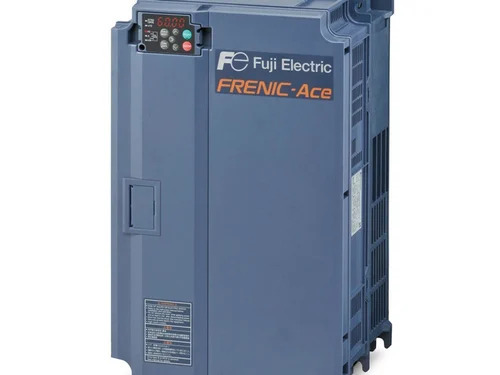

Fuji AC Drives, FRN0290E2S-4GB

Name: Fuji AC Drives, FRN0290E2S-4GB
Brand: LADDER LOGIX
Price: 462000 INR
Availability: InStock

Price 462000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0290E2S-4GB Specification

Efficiency
98%

Humidity %
<90% RH

Power Factor
>0.98

Shape
Rectangular

Surface Finish
Matte

Operating Temperature
-10C to +50C

IP Rating
IP20

Connector Type
Pluggable Terminal Block

Overheating Protection
YES

Mounting Type
Panel Mount

Insulation Material
PVC

Feature
V/F Control, Vector Control, Fault Diagnosis

Product Type
AC Drive

Application
Industrial Automation, Motor Control

Protection Level
Overcurrent, Overvoltage, Phase Loss

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
High Efficiency

Output Type
Digital & Analog

Color
Grey

Dimension (L*W*H)
560 x 270 x 325 mm

Weight
33 kg

Phase
Three Phase

Input Voltage
380-480 V AC

Size
Standard

Connection Type
Screw Terminal

No Of Poles
3

Material
Polycarbonate Body

Output Power Capacity
290 kW

Model Number
FRN0290E2S-4GB

Display Type
LCD Digital Display

Cooling Type
Forced Air Cooling

Noise Level
<75 dB(A)

Storage Temperature
-20°C to +60°C

Motor Compatibility
Induction, Synchronous

Communication Interface
RS-485

Altitude
Up to 1000 m without derating

Braking Unit
Integrated

Regenerative Function
Built-In

Starting Torque
200% at 0.5 Hz

Control Method
Dynamic Torque Vector Control / V/F Control

Enclosure Type
Open Type

About Fuji AC Drives, FRN0290E2S-4GB

Experience a monumental leap in industrial automation with the Fuji AC Drives, FRN0290E2S-4GB. Celebrated as the laureate of power control, this crowning model boasts dynamic torque vector control, a built-in regenerative function, and an integrated braking unit. Its robust 290 kW capacity ensures unmatched efficiency, while the LCD digital display and advanced fault diagnosis enhance usability. Don't miss out on our exclusive Price Cut and Best Price offer-Order Today and elevate your operations with this standard-setting solution trusted by exporters, suppliers, and wholesalers across India.

Application & Usage of Fuji AC Drives, FRN0290E2S-4GB

Fuji FRN0290E2S-4GB AC Drives are engineered for heavy-duty industrial environments, making them ideal for automation, motor control, and complex machining operations. Their usage extends to factories, processing plants, and large-scale manufacturing units. The drive's extra features include dynamic torque vector control, energy-efficient operation, integrated LCD digital display, overcurrent and overheating protection, vector and V/F control, and advanced fault diagnosis. This makes the FRN0290E2S-4GB perfect for demanding, high-performance applications requiring precision and reliability.

FOB Port, Packaging, and Delivery of Fuji AC Drives, FRN0290E2S-4GB

Efficient transportation and secure packaging are prioritized for the Fuji FRN0290E2S-4GB AC Drives, with dispatching streamlined from major Indian ports like Mumbai and Chennai. Each unit is securely boxed and cushioned, ensuring undamaged arrival. Standard delivery time is 7-14 days, following rigorous product valuation and inspection processes. Our logistics team communicates prompt dispatch details, granting seamless handover and tracking for domestic and international consignments, while maintaining deadlines and superior protection throughout transit.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings : HND: 200 , HHD: 150
Output Volt Range: 0 480V, 3-Phase , Amps, 3-Phase
HND: 253, HHD: 210 , Amps, Single Phase Input
HND: Check Instruction Book, HHD: Check Instruction Book
Overload capability, HND: 120%-1 min
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running: HND: 2700, HHD: 2300
DCR: DCR PN DCR4-132C, DCR Watt Loss: 159
Nominal Input Voltage, frequency: 460, 50/60Hz
Input Volt Range: 380-480, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type: BU132-4C, Braking Unit QTY.: 1
Braking Resistor Type: DB110-4C, Braking Resistor QTY.: 1

FAQ's of Fuji AC Drives, FRN0290E2S-4GB:

Q: How does the Fuji FRN0290E2S-4GB ensure high efficiency in industrial applications?

A: The Fuji FRN0290E2S-4GB leverages dynamic torque vector control, integrated regenerative and braking units, and V/F control technology to deliver a high efficiency rate of 98%, precise motor control, and significant energy savings during operation.

Q: What protection features are available in the FRN0290E2S-4GB model?

A: The drive incorporates comprehensive protection levels including overcurrent, overvoltage, phase loss, overheating, and fault diagnosis functionalities to safeguard both equipment and operators during continuous high-capacity operations.

Q: Where can the Fuji FRN0290E2S-4GB be installed for optimal performance?

A: This drive is designed for indoor panel mounting in locations such as industrial automation lines, factories, processing plants, and any application requiring reliable control over induction or synchronous motors.

Q: What is the process for ordering and dispatching the Fuji AC Drives FRN0290E2S-4GB?

A: Customers can place their orders directly through authorized exporters, suppliers, or wholesalers. Once the order is confirmed, it is processed, securely packed, and dispatched via reliable carriers, with tracking available until delivery.

Q: What are the main benefits of the Fuji FRN0290E2S-4GB over traditional AC drives?

A: Beyond standard V/F control, this drive offers advanced vector control, integrated monitoring, a built-in braking unit, and improved cooling, which collectively enhance operational reliability, response time, and longevity in challenging environments.

Q: How is the Fuji FRN0290E2S-4GB packaged for transportation?

A: Each unit is packaged in heavy-duty, protective material that cushions the drive from mechanical shocks and ensures protection from dust and moisture, allowing for safe transit locally and internationally.
