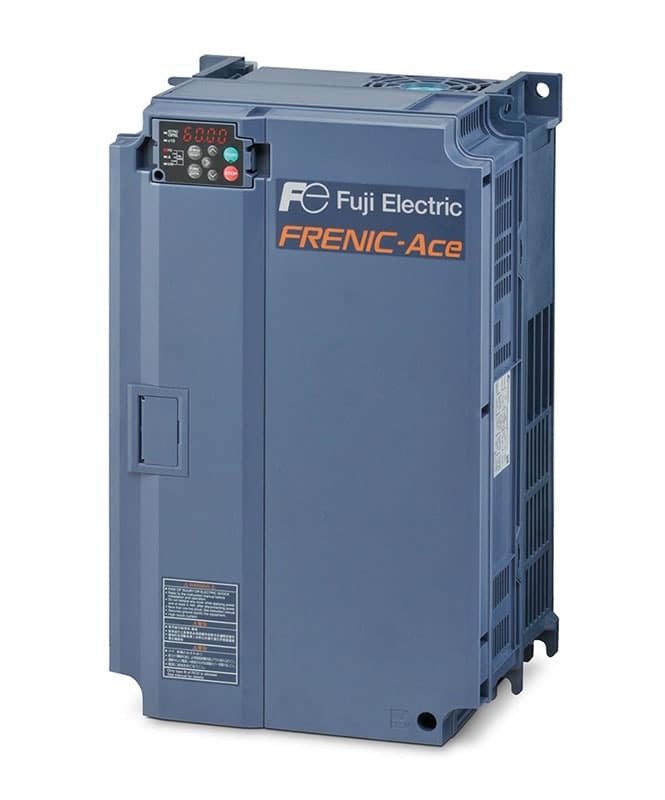

Fuji AC Drives, FRN0030E2S-2GB

Name: Fuji AC Drives, FRN0030E2S-2GB
Brand: LADDER LOGIX
Price: 72000 INR
Availability: InStock

Price 72000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0030E2S-2GB Specification

Overheating Protection
YES

Connector Type
Screw Type

Power Factor
>=0.95

Insulation Material
Polycarbonate

Mounting Type
Panel Mounting

Shape
Rectangular

Efficiency
96%

Humidity %
Up to 90% (Non-condensing)

Feature
Overload Protection, Compact Design

IP Rating
IP20

Surface Finish
Textured

Operating Temperature
-10C to +50C

Product Type
AC Drive

Application
Industrial Automation

Protection Level
IP20

Frequency (MHz)
50-60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
Low

Output Type
Digital

Color
Grey

Dimension (L*W*H)
400 mm x 200 mm x 190 mm

Weight
10 kg

Input Voltage
380-480 V AC

Phase
Three Phase

Size
Standard

Material
Plastic & Metal

No Of Poles
3

Connection Type
Screw Terminal

Motor Output
15 kW

Start Method
Direct, Soft Start

Braking Unit
Built-in

Model Number
FRN0030E2S-2GB

Cooling Method
Forced Air Cooling

Control Method
V/f (voltage/frequency) Control

Noise Level
70 dB(A)

Altitude
1000 m without derating

Communication Interface
RS485

Output Current
30 A

Display Type
LED Digital Display

About Fuji AC Drives, FRN0030E2S-2GB

Experience unprecedented performance with Fuji AC Drives FRN0030E2S-2GB, available on remarkable promotion and clearance. Designed for impeccable reliability in industrial automation, this model delivers a motor output of 15 kW and output current of 30 A, ensuring powerful yet efficient operation. Equipped with advanced V/f control, LED digital display, built-in braking unit, and comprehensive protection features, it provides seamless control for three-phase systems. Its compact rectangular design with IP20 protection and forced air cooling guarantees safety and longevity. Buy now from trusted exporters, suppliers, traders, and wholesalers in India for unmatched value and energy savings.

Highlighting Features and Applications

The Fuji AC Drive FRN0030E2S-2GB boasts remarkable features including V/f control, integrated braking unit, and advanced overload protection. Its robust construction with a textured finish makes it ideal for demanding industrial automation sites. Designed for panel mounting and compatible with standard three-phase systems, this drive fits seamlessly in manufacturing plants, process industries, and assembly lines, supporting efficient operations even in challenging environments.

Certifications, Supply Capacity, and Delivery Commitment

Offered at the lowest price in the market, Fuji AC Drives FRN0030E2S-2GB comes with authentic quality certifications for assured reliability. With substantial supply ability, large orders can be quickly fulfilled upon Purchase Order confirmation. Each unit is carefully packaged and promptly dispatched to ensure safe and timely delivery at your site, supporting your operational needs without delay.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND: 10
HHD: 7.5
Output Volt Range: 0 240V, 3-Phase
Amps, 3-Phase
HND: 30
HHD: 25
Amps, Single Phase Input
HND: Check Instruction Book
HHD: Check Instruction Book
Overload capability
HND: 120%-1 min
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND: 210
HHD: 170
DCR
DCR PN
DCR Watt Loss:
Nominal Input Voltage, frequency: 230, 50/60Hz
Input Volt Range: 200-240, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type:
Braking Unit QTY.:
Braking Resistor Type: DB5.5-2
Braking Resistor QTY.: 1

FAQ's of Fuji AC Drives, FRN0030E2S-2GB:

Q: How does the Fuji AC Drive FRN0030E2S-2GB improve industrial automation processes?

A: The Fuji AC Drive FRN0030E2S-2GB optimizes industrial automation by offering precise speed control, overload protection, and smooth motor operation, resulting in enhanced productivity and reduced downtime.

Q: What are the key features that make this drive suitable for harsh industrial environments?

A: This drive features a robust, textured exterior, IP20 protection, forced air cooling, and built-in safety mechanisms like overload and overheating protection, making it ideal for demanding industrial applications.

Q: Where can the Fuji FRN0030E2S-2GB be installed?

A: It can be panel-mounted in factories, industrial plants, assembly lines, or process industries-anywhere three-phase motor control is required in an industrial setting.

Q: What is the process for ordering and delivery of this AC drive?

A: To purchase, simply place a Purchase Order. After confirmation, the drive is prepared for shipment, carefully packaged, and promptly dispatched for timely delivery.

Q: What benefits are associated with the energy consumption and efficiency of this model?

A: Thanks to its low energy consumption and an impressive 96% efficiency rating, the drive reduces operating costs while maintaining optimal performance, making it a cost-effective solution.
