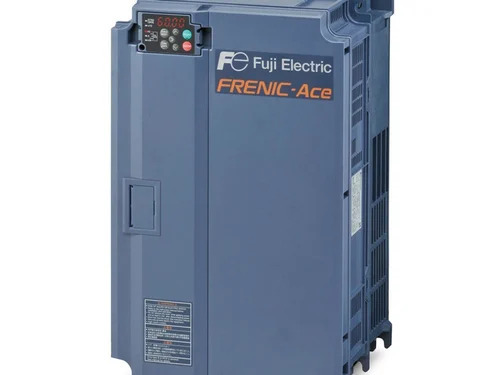

Fuji AC Drives, FRN0240E2S-4GB

Name: Fuji AC Drives, FRN0240E2S-4GB
Brand: LADDER LOGIX
Price: 421000 INR
Availability: InStock

Price 421000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0240E2S-4GB Specification

Power Factor
>0.95

IP Rating
IP20

Insulation Material
Epoxy

Overheating Protection
YES

Feature
High Performance, User Friendly Interface

Surface Finish
Powder Coated

Mounting Type
Wall Mount

Connector Type
Screw Terminal

Humidity %
5% to 95% non-condensing

Operating Temperature
-10C to +50C

Shape
Rectangular

Efficiency
98%

Product Type
AC Drive

Application
Industrial Automation, Motor Speed Control

Protection Level
Overload, Overcurrent, Short-circuit

Frequency (MHz)
50/60 Hz

Rated Voltage
380 - 480 V AC

Energy Consumption
Optimized for Low Consumption

Output Type
PWM

Color
Gray

Dimension (L*W*H)
540 x 320 x 265 mm

Weight
38 kg

Size
Medium

Input Voltage
380 - 480 V AC

Phase
Three Phase

Material
Aluminum Alloy

Connection Type
Terminal Block

No Of Poles
3

About Fuji AC Drives, FRN0240E2S-4GB

Grab this formidable opportunity with the Fuji AC Drives, FRN0240E2S-4GB, now available under an unprecedented promotion! Carefully selected for industrial automation, this prodigious drive boasts a 24 kW motor capacity, state-of-the-art vector control/V/f control, and efficient forced air cooling. Users will appreciate the intuitive LED display, RS-485 Modbus connectivity, and comprehensive protection, including overload, overcurrent, and short-circuit safeguards. Crafted with a durable aluminum alloy and finished with a powder coat, this medium-sized, wall-mountable solution offers optimized energy consumption (efficiency: 98%) and robust operating conditions, making it perfect for streamlined motor speed control.

Advanced Usage and Special Features of Fuji AC Drives: FRN0240E2S-4GB

Select Fuji's FRN0240E2S-4GB AC Drive for powerful industrial automation and motor speed control solutions. Designed for high-demand, continuous use, it operates seamlessly in indoor environments, ensuring reliable performance for factories and process plants. Its special features include formidable torque at low speeds, superior overload capabilities, optimized low energy consumption, and user-friendly interface. Experience high performance and safety, with advanced vector control, built-in brake control, and resilient overheating protection, making it a prodigious choice for demanding automation systems.

Sample Delivery, Packaging, and Certification for Fuji AC Drives: FRN0240E2S-4GB

We provide prompt delivery and dependable transport services for every order of Fuji AC Drives, FRN0240E2S-4GB. Discover our sample availability, allowing clients to assess quality before bulk purchases. Each unit is carefully packaged for secure transit, ensuring your drive arrives in pristine condition. Detailed quotation options are available upon request, accommodating bulk orders for traders and wholesalers. Our drives hold all necessary certifications, guaranteeing compliance and safety for your industrial applications across India.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings : HND: 150 , HHD: 125
Output Volt Range: 0 480V, 3-Phase , Amps, 3-Phase
HND: 210, HHD: 176
Amps, Single Phase Input, HND: Check Instruction Book
HHD: Check Instruction Book, Overload capability
HND: 120%-1 min, HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running, HND: 2250 , HHD: 1900
DCR DCR PN DCR4-110C , DCR Watt Loss: 122
Nominal Input Voltage, frequency: 460, 50/60Hz, Input Volt Range: 380-480, +10 to -15%, Max output Frequency: 500 Hz
Digital Input: 5 (7), Analog Inputs: 2, Transistor outputs: 2
General purpose relay output: 1, Alarm relay output: 1
Braking Unit and Braking Resistor, Braking Unit Type: BU90-4C
Braking Unit QTY.: 1, Braking Resistor Type: DB110-4C, Braking Resistor QTY.: 1

FAQ's of Fuji AC Drives, FRN0240E2S-4GB:

Q: How can I benefit from using the Fuji AC Drive FRN0240E2S-4GB in industrial automation?

A: The Fuji AC Drive offers prodigious efficiency, low noise operation, precise motor speed control, and comprehensive protection features, making it ideal for seamless industrial automation and operational savings.

Q: What is the process for requesting a quotation or sample for the FRN0240E2S-4GB model?

A: To request a quotation or sample, contact our sales team directly via our website or email. We promptly provide detailed quotations and facilitate sample delivery through approved transport services.

Q: Where can I install the Fuji AC Drive FRN0240E2S-4GB, and what are the operational conditions?

A: This AC Drive is intended for indoor use, with optimal performance in temperatures from -10C to +50C and humidity between 5% to 95% (non-condensing). Wall mount installation is supported for medium-sized control panels.

Q: What certifications and protections does the Fuji AC Drive offer?

A: Each unit is certified for industrial applications, featuring formidable protections such as overload, overcurrent, and short-circuit safeguards, plus an IP20-rated enclosure for added safety.

Q: How does the Fuji AC Drive's communication interface support integration?

A: The drive comes equipped with an RS-485 Modbus interface, allowing seamless integration into modern industrial control systems for real-time monitoring and management.
