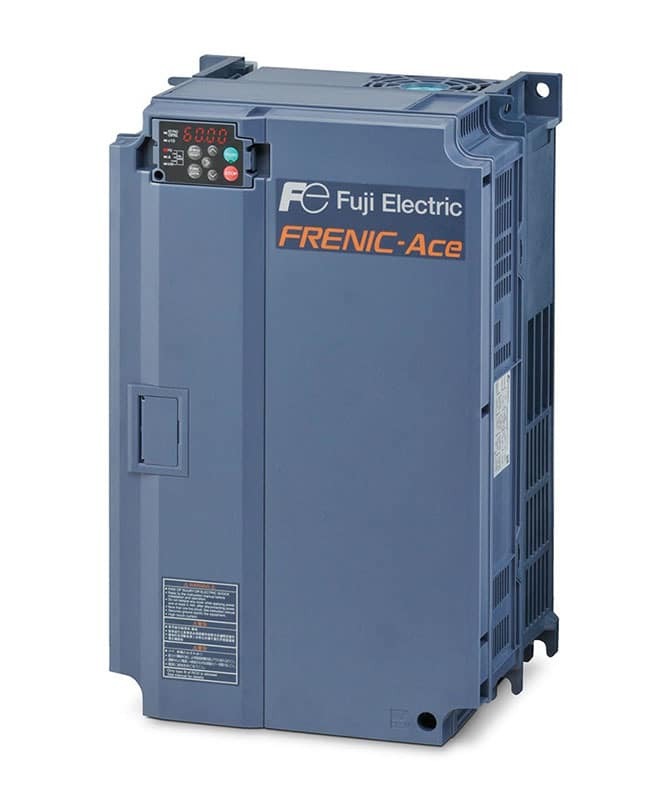

Fuji AC Drives, FRN0115E2S-2GB

Name: Fuji AC Drives, FRN0115E2S-2GB
Brand: LADDER LOGIX
Price: 180000 INR
Availability: InStock

Price 180000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0115E2S-2GB Specification

Overheating Protection
Built-in Thermal Protection

Humidity %
90% max

Insulation Material
Plastic & Metal

Efficiency
98%

IP Rating
IP20

Operating Temperature
-10C to +50C

Power Factor
>0.95

Connector Type
Screw Terminal

Surface Finish
Painted

Mounting Type
Panel Mount

Feature
Overload Protection, Soft Start, Auto Restart

Shape
Rectangular

Product Type
AC Drive

Application
Industrial Automation, Motor Speed Control

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
High Efficiency

Output Type
Analog & Digital

Color
Grey

Dimension (L*W*H)
260 x 180 x 140 mm

Weight
10 kg

Phase
Three Phase

Input Voltage
380-480 V AC

Size
Standard

Material
Metal & Polycarbonate

No Of Poles
3

Connection Type
Terminal Block

Altitude
Up to 1000 m without derating

Model
FRN0115E2S-2GB

Start Torque
150% at 1 Hz

Cooling Method
Forced Air

Noise Level
<70 dB

Motor Capacity
11 kW / 15 HP

Display Type
LED Digital

Output Current
24 A

Control Method
V/f Control / Sensorless Vector Control

Communication Interface
RS-485

Storage Temperature
-20°C to +65°C

Frequency Setting
Digital, Analog, Serial RS-485

Braking Unit
Built-in

About Fuji AC Drives, FRN0115E2S-2GB

Seize this formidable chance to elevate your process with the Fuji AC Drives, FRN0115E2S-2GB. For a limited time, redeem unbeatable prices on this crackerjack solution trusted in industrial automation across India. Boasting 11 kW/15 HP motor capacity, advanced V/f and sensorless vector control, and a gorgeous LED digital display, this three-phase drive ensures robust performance and superior energy efficiency. Enjoy features like built-in braking, overload and overheating protection, and multiprotocol communication in a compact, gorgeous panel mount design. Expertly crafted for reliability-grab yours while stocks last!

Top Features, Extra Enhancements & Application Areas

Fuji AC Drives, FRN0115E2S-2GB delivers high efficiency with 98% energy utilization and robust IP20 protection. The model features forced-air cooling, built-in braking, soft start and auto-restart. With a formidable start torque of 150% at 1 Hz, it excels in precise motor speed control for a variety of industrial automation environments. Extensive analog, digital, and RS-485 connectivity, along with multiple communication interface options, enhance its adaptability in manufacturing, processing, and automated industrial applications.

Certifications, Export & Domestic Market Delivery

Certified with dependable safety, the Fuji AC Drives are delivered across major export and domestic markets in India. Secure transportation ensures the product arrives intact, while efficient delivery systems expedite the process to both local and international buyers. Supported by a network of exporters, suppliers, traders, and wholesalers, the drive is seamlessly delivered for all your industrial requirements. Professional logistical arrangements guarantee the AC Drive reaches your facility promptly, no matter your market location.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND: 40
HHD: 30
Output Volt Range: 0 240V, 3-Phase
Amps, 3-Phase
HND: 115
HHD: 90
Amps, Single Phase Input
HND: Check Instruction Book
HHD: Check Instruction Book
Overload capability
HND: 120%-1 min
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND: 1120
HHD: 790
DCR
DCR PN
DCR Watt Loss:
Nominal Input Voltage, frequency: 230, 50/60Hz
Input Volt Range: 200-240, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type:
Braking Unit QTY.:
Braking Resistor Type: DB22-2
Braking Resistor QTY.: 1
Enclosure
Standard: IP20, UL open type
Cooling: Fan cooling
Weight/Mass [lbs.(kg) 22(10)
Drawing Open Chassis: ROA701511
Dimensions H x W x D (inches): 15.75 x 9.84 x 7.68
NEMA Kit
NEMA/UL Type 1: NEMA1-22G1-24
Option Cards, Communication Card
Modbus RTU: OPC-E2-RS
DeviceNet: OPC-DEV
Profibus: OPC-PDP3
Profinet: OPC-PRT3
CC-Link: OPC-CCL
CANOpen: OPC-COP2
Multiprotocol Ethernet Interface: OPC-PRT3
Option Card, Input/Output
Digital Output interface card: OPC-DIO
Analog Input / Output Interface Card: OPC-AIO
PG Interface Card (5V): OPC-E2-PG
PG Interface Card (12V): OPC-E2-PG3

FAQ's of Fuji AC Drives, FRN0115E2S-2GB:

Q: How is the Fuji AC Drives, FRN0115E2S-2GB installed and connected?

A: The Fuji FRN0115E2S-2GB is designed for panel mounting and uses screw terminal blocks for connection. It accommodates three-phase, 380-480V AC input and includes clear terminal markings for safe and straightforward installation in industrial control panels.

Q: What application areas benefit most from this AC Drive model?

A: This model is ideal for industrial automation, precise motor speed control, and process line applications where reliable operation, high efficiency, and extensive control interface options are required.

Q: When should the built-in thermal and overload protection be utilized?

A: The built-in thermal and overload protection automatically activates when operational limits are reached, offering added safety by preventing overheating and equipment damage during extended or demanding use.

Q: Where can buyers in India and abroad expect delivery of this product?

A: Fuji AC Drives, FRN0115E2S-2GB can be delivered throughout India and major international markets via established exporter and supplier networks, ensuring timely and secure transportation.

Q: What are the benefits of the multiprotocol communication interface?

A: The drive supports RS-485, Modbus RTU, Profibus, DeviceNet, Profinet, CC-Link, and CANOpen, enabling seamless integration with a variety of automation systems and flexible communication in complex industrial setups.

Q: How does the Fuji drive maintain operation under varying environmental conditions?

A: The device operates effectively between -10C to +50C and 20% to 90% humidity, with a storage temperature of -20C to +65C and altitude support up to 1000 meters without derating.
