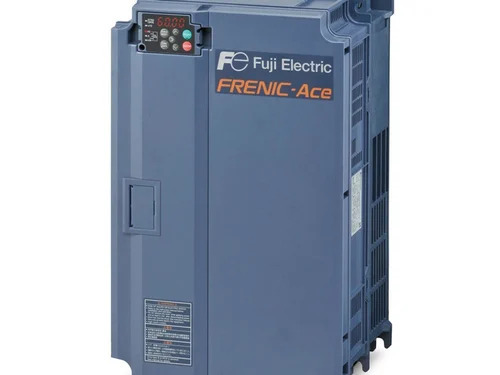

Fuji Drives, Ace Series -FRN0105E2S-4GBX

Send Inquiry

Request To Call Back

Fuji Drives, Ace Series -FRN0105E2S-4GBX

Name: Fuji Drives, Ace Series -FRN0105E2S-4GBX
Brand: LADDER LOGIX
Price: 205000 INR
Availability: InStock

Price 205000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji Drives, Ace Series -FRN0105E2S-4GBX Specification

Humidity %
0-95% (Non-Condensing)

Surface Finish
Matte

Shape
Rectangular

Insulation Material
Plastic/ABS

Efficiency
96%

Feature
Digital Display, Built-In PID Control

IP Rating
IP20

Power Factor
0.98

Operating Temperature
-10 to +50C

Mounting Type
Panel Mount

Connector Type
Screw Terminal

Overheating Protection
YES

Product Type
AC Drive

Application
Industrial Automation

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
High Efficiency

Output Type
Variable Frequency Output

Color
Grey

Dimension (L*W*H)
128 x 108 x 174 mm

Weight
2.2 kg

Input Voltage
380-480 V AC

Size
Standard

Phase
Three Phase

Connection Type
Panel Mount Terminal

Material
ABS Plastic

No Of Poles
3

Model Number
FRN0105E2S-4GBX

Braking Function
Built-In Dynamic Braking Unit

Cooling
Air Cooled

Altitude
Up to 1000 m without derating

Display Type
LCD Digital

Motor Compatibility
1.5 kW (2 HP) 3-Phase Motor

Communication Interface
RS485 Modbus

Control Method
V/f Control, Sensorless Vector Control

About Fuji Drives, Ace Series -FRN0105E2S-4GBX

Unleash impeccable performance with the Fuji Drives, Ace Series - FRN0105E2S-4GBX, now available at an unbeatable price thanks to our latest promotion and remarkable price cut. Designed for synergy with 1.5 kW (2 HP) three-phase motors, this drive incorporates V/f and sensorless vector control for precise automation. Its marvelous LCD digital display, built-in dynamic braking, and robust IP20-rated enclosure reflect both durability and innovation. With remarkable efficiency up to 96% and digital communication via RS485 Modbus, this ace drive is ideal for energy-conscious enterprises seeking advanced yet cost-effective motor control solutions.

Versatile Application for Modern Industry

The Fuji Drives, Ace Series - FRN0105E2S-4GBX is perfectly suited for industrial automation environments, such as manufacturing plants, packaging units, and conveyor systems. It is designed for seamless integration with various machinery, thanks to its robust control methods and efficient motor compatibility. This drive excels in applications requiring precise speed regulation, energy optimization, and reliable performance. Furthermore, it can be utilized in HVAC systems, process industries, and wherever variable frequency output is essential for operational excellence.

Reliable Supply & Prompt Delivery Worldwide

We offer Fuji Drives, Ace Series - FRN0105E2S-4GBX at a competitive list price, making it a smart expenditure for businesses seeking value and performance. Our supply ability ensures continuous stock for both small and bulk orders, with products shipped promptly from our Indian warehouses. Standard delivery times are quick and efficient, and FOB Port options provide flexibility for international traders, exporters, suppliers, and wholesalers. Secure your automation solutions now and optimize your industrial operations without delay.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND: 60
HHD: 50
Output Volt Range: 0 480V, 3-Phase
Amps, 3-Phase
HND: 91
HHD: 75
Amps, Single Phase Input
HND: Check Instruction Book
HHD: Check Instruction Book
Overload capability
HND: 120%-1 min
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND: 1200
HHD: 1000
DCR
DCR PN
DCR Watt Loss:
Nominal Input Voltage, frequency: 460, 50/60Hz
Input Volt Range: 380-480, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type: BU37-4C
Braking Unit QTY.: 1
Braking Resistor Type: DB37-4C
Braking Resistor QTY.: 1
Enclosure
Standard: IP20, UL open type
Cooling: Fan cooling
Weight/Mass [lbs.(kg) 57(26)
Drawing Open Chassis: ROA701512
Dimensions H x W x D (inches): 21.65 x 12.9 x 10.28
NEMA Kit
NEMA/UL Type 1: NEMA1-105E2-4
Option Cards, Communication Card
Modbus RTU: OPC-E2-RS
DeviceNet: OPC-DEV
Profibus: OPC-PDP3
Profinet: OPC-PRT3
CC-Link: OPC-CCL
CANOpen: OPC-COP2
Multiprotocol Ethernet Interface: OPC-PRT3
Option Card, Input/Output
Digital Output interface card: OPC-DIO
Analog Input / Output Interface Card: OPC-AIO
PG Interface Card (5V): OPC-E2-PG
PG Interface Card (12V): OPC-E2-PG3

FAQ's of Fuji Drives, Ace Series -FRN0105E2S-4GBX:

Q: How does the Fuji Drives, Ace Series - FRN0105E2S-4GBX enhance industrial automation processes?

A: The FRN0105E2S-4GBX drive incorporates advanced V/f and sensorless vector control methods, allowing for precise motor regulation and high efficiency, which are crucial in sophisticated automation and energy-saving operations.

Q: What types of motors is this drive compatible with?

A: This model is compatible with 1.5 kW (2 HP) three-phase motors, making it suitable for a variety of heavy-duty industrial applications.

Q: Where can this drive be installed and what are its ideal application environments?

A: It is ideal for use in manufacturing plants, HVAC systems, process industries, and conveyor operations, thanks to features like dynamic braking, panel-mount design, and robust digital display.

Q: What is the supply and shipping process for international orders?

A: Products are shipped from India with rapid processing times. We offer flexible FOB Port options and reliable delivery to ensure timely receipt regardless of your location.

Q: How does the FRN0105E2S-4GBX minimize operational expenditure?

A: With high energy efficiency (up to 96%) and built-in overheat protection, it reduces electricity costs and minimizes downtime, contributing to lower ongoing expenses for the user.
