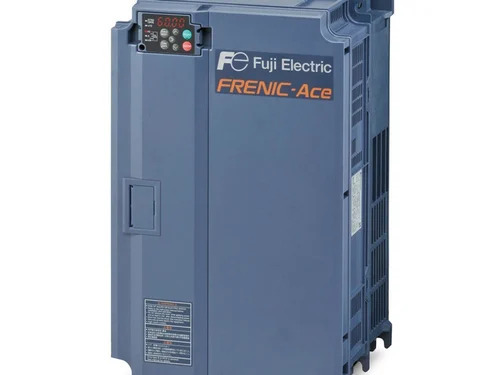

Fuji AC Drives, FRN0004E2S-2GB

Price 26000.0 INR/ Piece

Get a Price/Quote

Fuji AC Drives, FRN0004E2S-2GB Specification

Connector Type
cable

Mounting Type
.

Shape
rectangular box

Insulation Material
vfd

Overheating Protection
NO

Surface Finish
Pean

Power Factor
230

Feature
vfd

Operating Temperature
60 Celsius (oC)

IP Rating
IP20

Product Type
vfd

Application
VFD

Protection Level
Other

Frequency (MHz)
50 Hertz (HZ)

Rated Voltage
240 Volt (V)

Energy Consumption
0.4 Kilowatt-hour ( KWH)

Output Type
Output Volt Range: 0 240V, 3-Phase

Color
blue

Dimension (L*W*H)
5 Inch (in)

Weight
1.3 Kilograms (kg)

Warranty
1 Year

Input Voltage
230 Volt (V)

Size
5.00 x 2.68 x 3.94

Phase
3

No Of Poles
1

Connection Type
cable

Material
vfd

Fuji AC Drives, FRN0004E2S-2GB Trade Information

Minimum Order Quantity
1 Piece

FOB Port
By Air

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Month

Delivery Time
3 Days

Packaging Details
box

Main Export Market(s)
South America, Eastern Europe, Western Europe, Asia, Australia, Middle East, Africa, Central America, North America

Main Domestic Market
All India

About Fuji AC Drives, FRN0004E2S-2GB

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND: 1
HHD: 1/2
Output Volt Range: 0 240V, 3-Phase
Amps, 3-Phase
HND: 3.5
HHD: 3
Amps, Single Phase Input
HND: Check Instruction Book
HHD: Check Instruction Book
Overload capability
HND: 120%-1 min
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND: 47
HHD: 35
DCR
DCR PN
DCR Watt Loss:
Nominal Input Voltage, frequency: 230, 50/60Hz
Input Volt Range: 200-240, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type:
Braking Unit QTY.:
Braking Resistor Type: DB0.75-2
Braking Resistor QTY.: 1
