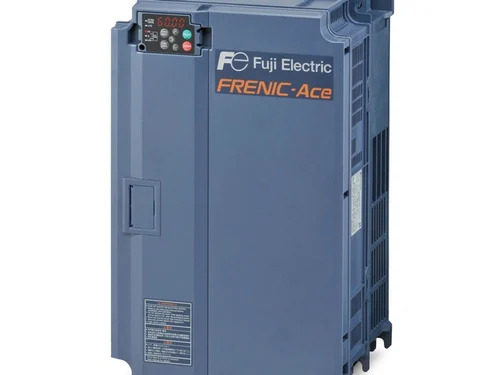

Fuji AC Drives, FRN0002E2S-7GB

Name: Fuji AC Drives, FRN0002E2S-7GB
Brand: LADDER LOGIX
Price: 21000 INR
Availability: InStock

Price 21000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0002E2S-7GB Specification

Humidity %
95% RH (non-condensing)

Overheating Protection
YES

Feature
Compact Design, Energy Saving

Mounting Type
Panel Mount

Shape
Rectangular

Insulation Material
Polycarbonate

Connector Type
Screw Terminal

Power Factor
0.98

IP Rating
IP20

Surface Finish
Matte

Operating Temperature
-10C to +50C

Efficiency
98%

Product Type
AC Drive

Application
Industrial Automation

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
Low

Output Type
Digital

Color
Grey

Dimension (L*W*H)
130 x 110 x 125 mm

Weight
1.5 kg

Phase
Three Phase

Size
Standard

Input Voltage
380-480 V AC

No Of Poles
3

Connection Type
Terminal Block

Material
Plastic, Metal

Display Type
LED

Output Power
0.4 kW

EMC Filter
Built-in

Control Method
V/F Control

Motor Control
Induction Motor

Braking Unit
Built-in

Cooling Method
Self-cooling (Fanless)

Speed Setting
0.01 Hz step

Standards Compliance
CE, UL, cUL

Start/Stop Control
Digital/External

Output Current
1.6 A

Communication Interface
RS485

About Fuji AC Drives, FRN0002E2S-7GB

Capitalize on the renowned Fuji FRENIC-Ace (E2) AC Drive, model FRN0002E2S-7GB, designed for excellent performance in industrial automation. Experience instant checkout and easily redeem unbeatable value with this compact, energy-efficient drive. Delivering ace-level control with V/F method, this induction motor drive features a built-in braking unit, integrated EMC filter, and fanless, self-cooling mechanism for reliability. Its robust 0.4 kW output power and 1.6 A output current, along with RS485 communication interface, make it an ideal solution for suppliers, traders, exporters, and wholesalers seeking superior automation solutions across India.

Versatile Application Across Industries

The Fuji AC Drive FRN0002E2S-7GB excels in diverse industrial automation environments. Its robust three-phase, digital control is suited for factories, manufacturing sites, process industries, and automated machinery. It is designed for seamless panel mounting, making it the ace choice for OEMs and systems integrators. Ideal for continuous operations, it ensures smooth, precise speed control for conveyor systems, pumps, and fans, maximizing uptime and productivity while maintaining excellent energy efficiency at every site of application.

Premium Packaging and Market Reach

Every Fuji AC Drive FRN0002E2S-7GB is meticulously packed to assure product integrity during transit, reflecting its premium market value. These shipped goods are secured in sturdy, tamper-evident packaging to prevent any damage and ensure safe delivery across India's main domestic markets. Exporters and suppliers benefit from consistent supply ability, meeting bulk and recurring orders efficiently. As a trusted trader and wholesaler, you can confidently offer customers genuine, high-performing drives with full security and support.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND:
HHD: 1/2
Output Volt Range: 0 240V, 3-Phase
Amps, 3-Phase
HND:
HHD:
Amps, Single Phase Input
HND:
HHD: 3
Overload capability
HND:
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND:
HHD: 36
DCR
DCR PN
DCR Watt Loss:
Nominal Input Voltage, frequency: 230, 50/60Hz
Input Volt Range: 200-240, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type:
Braking Unit QTY.:
Braking Resistor Type: DB0.75-2
Braking Resistor QTY.: 1

FAQ's of Fuji AC Drives, FRN0002E2S-7GB:

Q: How does the Fuji FRN0002E2S-7GB AC Drive enhance industrial automation processes?

A: This drive offers precise V/F control, built-in energy-saving features, and robust protection, making it ideal for seamless, efficient motor control in automated systems such as conveyors, pumps, and fans.

Q: What are the primary benefits of using the Fuji FRENIC-Ace (E2) Series for industrial applications?

A: The drive provides high efficiency (98%), compact design, panel mounting, built-in EMC filter and braking unit, ensuring energy saving, reliability, and compliance in critical industrial operations.

Q: Where can the Fuji FRN0002E2S-7GB AC Drive be installed for maximum advantage?

A: It is best suited for deployment in manufacturing plants, process industries, and OEM equipment, particularly where consistent digital speed and torque control are required.

Q: What is the process for redeeming after-sales support for this Fuji AC Drive in India?

A: After purchase, you can contact authorized Fuji suppliers or service outlets for technical support, installation assistance, or warranty claims directly through their customer service channels.

Q: How do the built-in features like EMC filter and braking unit benefit the user?

A: These integrated components minimize electromagnetic interference, enhance motor braking capabilities, and improve overall operational safety and equipment longevity.
