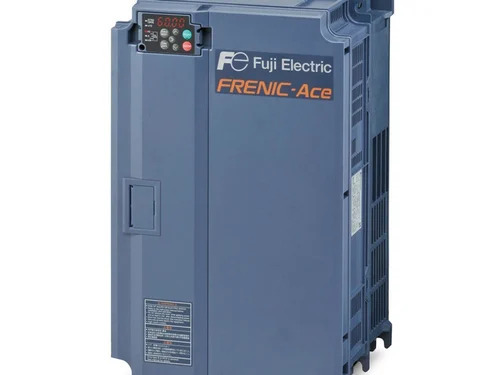

Fuji Drives, Ace Series

Name: Fuji Drives, Ace Series
Brand: LADDER LOGIX
Price: 171000 INR
Availability: InStock

Price 171000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji Drives, Ace Series Specification

Feature
Overload Protection, High Reliability

Surface Finish
Matte

Mounting Type
Panel Mount

Overheating Protection
YES

Humidity %
5% to 95% RH

IP Rating
IP20

Insulation Material
Polycarbonate

Shape
Rectangular

Operating Temperature
-10C to +50C

Efficiency
98%

Connector Type
Screw Type

Power Factor
>0.98

Product Type
AC Drive

Application
Industrial Automation

Protection Level
IP20

Frequency (MHz)
50-60 Hz

Rated Voltage
380V - 480V

Energy Consumption
Low

Output Type
Analog & Digital

Color
Grey

Dimension (L*W*H)
200mm x 100mm x 185mm

Weight
2.8 kg

Size
Standard

Phase
Three Phase

Input Voltage
380V

Connection Type
Screw Terminal

No Of Poles
4

Material
ABS Plastic and Metal

Storage Temperature
-20°C to +60°C

Analog Inputs
2

Service Life
>10 Years

Braking Unit
Built-in

Communication Interface
RS485 (Modbus)

Digital Inputs
6

Starting Torque
200% at 0.5Hz

Environmental Standards
IEC 61800-5-1

Model
Ace Series

Control Method
V/F Control & Sensorless Vector

Noise Level
< 65dB

Output Frequency Range
0.1 to 400Hz

Cooling Method
Forced Air

Safety Functions
Over Current, Overload, Short Circuit Protection

Input Phase
Three Phase

Display Type
LED Digital

Programming Method
Keypad / External

Torque Range
150% at 1Hz

About Fuji Drives, Ace Series

Unveil the crowning achievement of industrial automation with Fuji Drives Ace Series. Tailored for performance, this drive stands toweringly above with an incomparable V/F Control & Sensorless Vector system. Now available at a special rate, seize the offer to buy power with RS485 (Modbus) connectivity, forced air cooling, and an LED digital display. Boasting built-in safety protections and a matte-finished enclosure, it supports a torque range up to 200% at ultra-low speeds. Perfect for exporters, suppliers, and traders seeking reliability and high-efficiency solutions in India.

Distinctive Features & Applications of Fuji Drives, Ace Series

Fuji Drives Ace Series, engineered with built-in braking units, overload protection, and six digital inputs, delivers superior operational flexibility for industrial automation. This machine boasts a matte-finished, IP20-protected ABS plastic and metal housing, ensuring longevity. Its exceptional starting torque and sophisticated safety functions make it ideal for manufacturing lines, process automation, and robust machinery applications. Integrated RS485 communication and a comprehensive keypad programming method provide seamless integration and adaptable control in any demanding industrial environment.

Packaging Insights, Payment Terms, and Swift Dispatching

Experience assured market value with Fuji Drives Ace Series. Each unit is secured in durable, industry-standard packaging to prevent damage during transport. We support a broad array of payment terms to optimize your expenditure and facilitate smooth procurement. Rely on our efficient dispatching system for rapid deliveries, enabling you to maintain uninterrupted operations. Our dependable logistics and transparent delivery schedules guarantee timely arrival and service, helping suppliers and traders align precisely with production requirements.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND: 50
HHD: 40
Output Volt Range: 0 480V, 3-Phase
Amps, 3-Phase
HND: 75
HHD: 60
Amps, Single Phase Input
HND: Check Instruction Book
HHD: Check Instruction Book
Overload capability
HND: 120%-1 min
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND: 1000
HHD: 800
DCR
DCR PN
DCR Watt Loss:
Nominal Input Voltage, frequency: 460, 50/60Hz
Input Volt Range: 380-480, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type: BU37-4C
Braking Unit QTY.: 1
Braking Resistor Type: DB30-4C
Braking Resistor QTY.: 1
Enclosure
Standard: IP20, UL open type
Cooling: Fan cooling
Weight/Mass [lbs.(kg) 55(25)
Drawing Open Chassis: ROA701512
Dimensions H x W x D (inches): 21.65 x 12.9 x 10.28
NEMA Kit
NEMA/UL Type 1: NEMA1-105E2-4
Option Cards, Communication Card
Modbus RTU: OPC-E2-RS
DeviceNet: OPC-DEV
Profibus: OPC-PDP3
Profinet: OPC-PRT3
CC-Link: OPC-CCL
CANOpen: OPC-COP2
Multiprotocol Ethernet Interface: OPC-PRT3
Option Card, Input/Output
Digital Output interface card: OPC-DIO
Analog Input / Output Interface Card: OPC-AIO
PG Interface Card (5V): OPC-E2-PG
PG Interface Card (12V): OPC-E2-PG3

FAQ's of Fuji Drives, Ace Series:

Q: How does the Fuji Drives Ace Series ensure operational safety?

A: The Ace Series comes equipped with overcurrent, overload, and short-circuit protection, along with built-in braking units, to ensure comprehensive safety during operation.

Q: What are the main industrial applications for the Ace Series?

A: The Ace Series is ideal for diverse industrial automation tasks such as manufacturing lines, process control systems, and heavy-duty machinery, thanks to its robust torque and reliable vector control.

Q: When can I expect delivery after placing an order?

A: Delivery times depend on order size and shipping location, but our streamlined dispatching process ensures prompt shipment to maintain your production schedules.

Q: Where can I integrate the Fuji Drives Ace Series in my facility?

A: You can easily panel-mount this drive in control cabinets or panels, making it suitable for central automation systems in factories or process plants.

Q: What benefits does the built-in braking unit provide?

A: The built-in braking unit enhances the drive's stopping capability, delivering rapid and safe halts under high-load conditions, which is crucial for precise process control.

Q: How is the programming of the Ace Series accomplished?

A: Programming is user-friendly, performed either through an ergonomic keypad on the device or via external interfaces for more complex customization opportunities.
