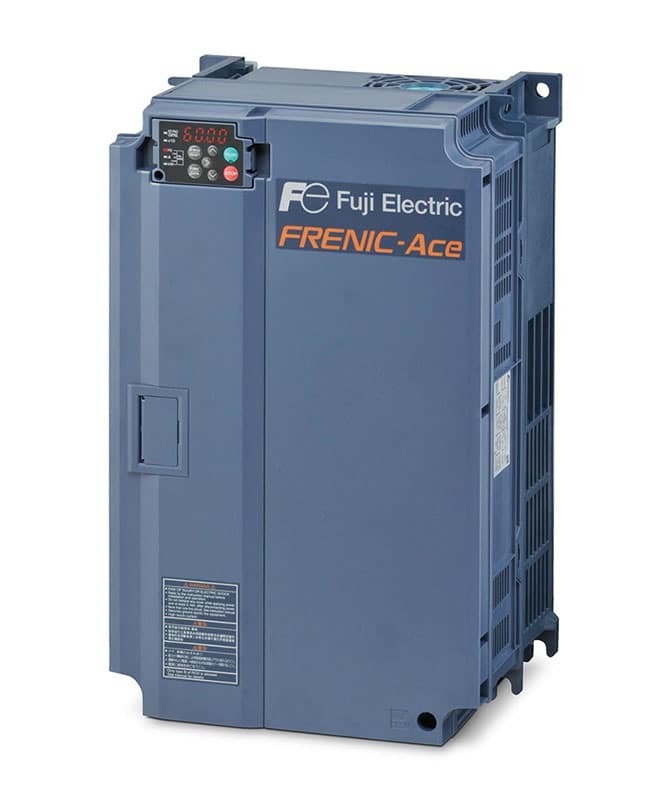

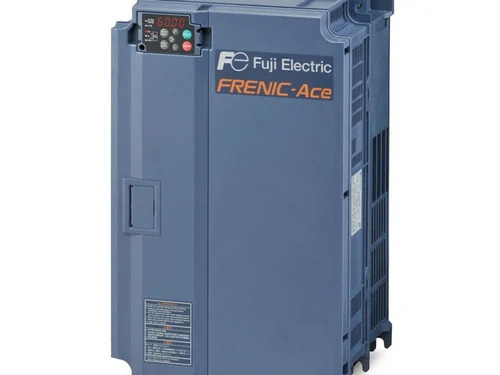

Fuji AC Drives, FRN0040E2S-2GB

Name: Fuji AC Drives, FRN0040E2S-2GB
Brand: LADDER LOGIX
Price: 80000 INR
Availability: InStock

Price 80000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0040E2S-2GB Specification

Humidity %
5% - 95% RH non-condensing

Overheating Protection
Yes, Inbuilt

Feature
V/F Control, Built-in PID

Connector Type
Screw Connector

IP Rating
IP20

Mounting Type
Panel Mount

Shape
Rectangular

Operating Temperature
-10C to +50C

Insulation Material
Polycarbonate

Surface Finish
Matte Finish

Power Factor
>=0.95

Efficiency
>96%

Product Type
AC Drive

Application
Industrial Automation

Protection Level
IP20

Frequency (MHz)
50-60 Hz

Rated Voltage
415 V AC

Energy Consumption
Optimized

Output Type
Three Phase Output

Color
Grey

Dimension (L*W*H)
320 mm x 195 mm x 210 mm

Weight
13 kg

Phase
Three Phase

Input Voltage
380-480V AC

Size
Standard

Material
Plastic and Metal

No Of Poles
3

Connection Type
Screw Terminal

Display Type
Digital LED

Rated Output Power
22 kW

Series
FRN E2S

Model Number
FRN0040E2S-2GB

Digital Inputs
5 programmable

Braking Unit
Built-in

Overload Capacity
150% for 60 seconds

Compliances
CE, UL, cUL

Rated Output Current
40 A

Cooling Method
Forced Air Cooling

Analog Input
1 (010 V, 420 mA)

Control Method
V/f (Voltage/Frequency) Control

Digital Outputs
2 relay outputs

About Fuji AC Drives, FRN0040E2S-2GB

Experience the lavish performance of Fuji AC Drives FRN0040E2S-2GB from the FRENIC-Ace (E2) Series, tailored for sublime industrial automation. Boasting a rare output power of 22 kW and advanced V/f control, this rectangular three-phase drive delivers astounding efficiency above 96%. The digital LED display and built-in braking unit add practical value, while the matte grey finish exudes sophistication. Add to Cart and order today to elevate your operations with this robust, IP20-rated solution. Limited availability from India's trusted exporter, supplier, trader, and wholesaler.

Superior Usage Versatility and Competitive Edge

The Fuji AC Drive FRN0040E2S-2GB is engineered for extensive industrial automation tasks, supporting varied applications due to its robust V/F control, integrated PID, and multi-programmable inputs. Its competitive advantages include high overload capacity, astounding efficiency, and optimized energy consumption. Ideal for advanced manufacturing lines and processing automation, it excels in demanding environments, ensuring reliability and superior operational command for businesses seeking a trustworthy drive solution.

Swift Delivery, Strategic Ports, and Leading Market Access

Your Fuji AC Drive FRN0040E2S-2GB can be shipped quickly, with prompt dispatch from major Indian FOB ports. We ensure efficient and timely delivery to the main domestic market, enabling reduced downtime and swift implementation. Benefit from our competitive list price and professional logistics network for seamless order fulfillment. Order today and receive this premium drive within estimated delivery timelines, enjoying exceptional reliability from a renowned exporter and supplier.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND: 15
HHD: 10
Output Volt Range: 0 240V, 3-Phase
Amps, 3-Phase
HND: 40
HHD: 33
Amps, Single Phase Input
HND: Check Instruction Book
HHD: Check Instruction Book
Overload capability
HND: 120%-1 min
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND: 370
HHD: 280
DCR
DCR PN
DCR Watt Loss:
Nominal Input Voltage, frequency: 230, 50/60Hz
Input Volt Range: 200-240, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type:
Braking Unit QTY.:
Braking Resistor Type: DB7.5-2
Braking Resistor QTY.: 1

FAQ's of Fuji AC Drives, FRN0040E2S-2GB:

Q: How does the Fuji AC Drive FRN0040E2S-2GB benefit industrial automation processes?

A: This drive provides reliable V/f control, integrated PID, advanced protection, and high efficiency-all essential for demanding industrial automation, resulting in optimized energy use and enhanced operational precision.

Q: What are the main usage applications for this model?

A: Designed for industrial automation, the FRN0040E2S-2GB is ideal for manufacturing lines, conveyor systems, processing equipment, and machinery requiring precise speed and torque control.

Q: When can I expect my order to be dispatched after purchase?

A: Once your order is confirmed, the Fuji AC Drive will be dispatched promptly from our warehouse, with typical shipping timelines informed at the time of order depending on your location.

Q: Where is the FOB port for export shipments?

A: Our standard FOB ports are major locations in India, ensuring worldwide accessibility and streamlined logistics for both domestic and international shipments.

Q: What competitive advantages does this drive offer compared to others?

A: Key advantages include high overload capacity, built-in braking unit, digital LED display, optimized energy consumption, and compliance with CE, UL, and cUL standards.

Q: How do I connect the Fuji AC Drive to my system?

A: Utilize the screw terminals and connectors to safely mount and integrate the drive into your panel system. Please refer to the user manual for detailed wiring instructions.
