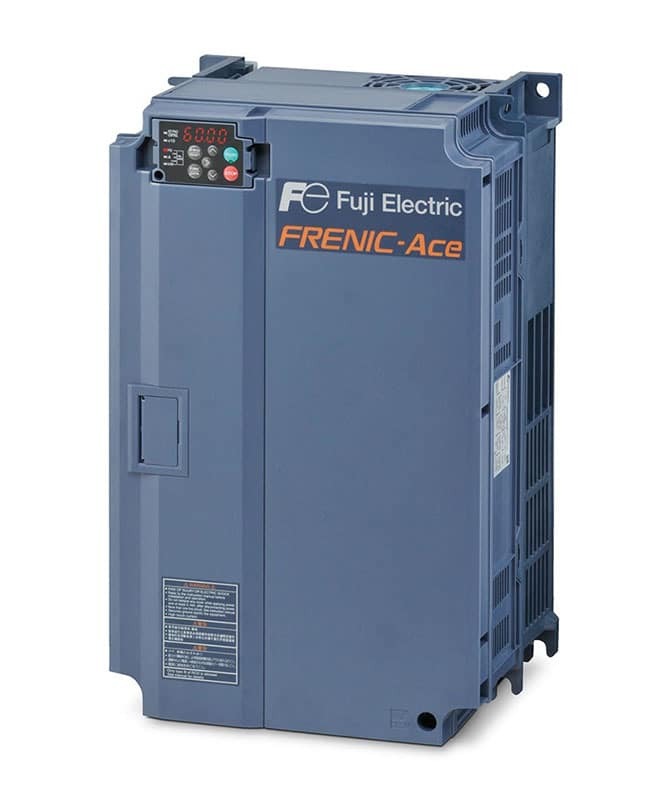

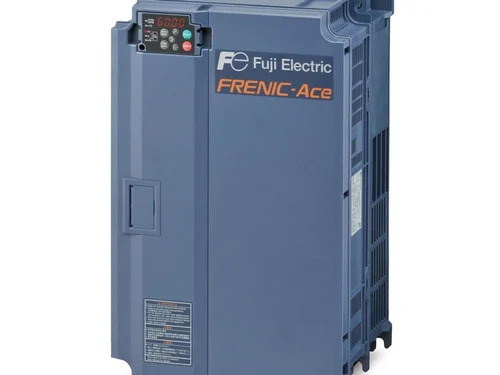

Fuji AC Drives, FRN0007E2S-4GB

Name: Fuji AC Drives, FRN0007E2S-4GB
Brand: LADDER LOGIX
Price: 34300 INR
Availability: InStock

Price 34300 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0007E2S-4GB Specification

Overheating Protection
YES

Efficiency
>95%

Feature
Variable Frequency Drive, Compact Design, Easy Installation

Connector Type
Screw Type

Power Factor
>0.98

Mounting Type
Panel Mount

Insulation Material
Polycarbonate

Humidity %
5% - 95%

Surface Finish
Powder Coated

IP Rating
IP20

Operating Temperature
-10C to +50C

Shape
Rectangular

Product Type
AC Drive

Application
Industrial Automation, Motor Speed Control

Protection Level
Overload, Overcurrent, Short Circuit

Frequency (MHz)
50/60 Hz

Rated Voltage
380 - 480 V AC

Energy Consumption
Low

Output Type
Three-phase

Color
Grey

Dimension (L*W*H)
130 x 110 x 160 mm

Weight
1.5 kg

Size
Standard

Input Voltage
Three Phase 400 V AC

Phase
Three Phase

No Of Poles
3

Connection Type
Screw Terminal

Material
Plastic and Metal

About Fuji AC Drives, FRN0007E2S-4GB

The in-demand Fuji AC Drive FRN0007E2S-4GB from the incomparable FRENIC-Eco Series is renowned for its pristine performance in industrial automation. Boasting advanced V/f control, decorated with dynamic and DC injection braking, and an LED digital display, it ensures effortless operation. The compact, powder-coated body features superior overload, overcurrent, and short-circuit protection. Ending soon: Redeem robust control with RS485 communication, 150% starting torque at 1 Hz, and energy efficiency above 95%. Certified to CE and UL standards, enjoy unparalleled reliability, noise levels below 70 dB, and seamless panel mounting for standard industrial set-ups.

Material, Application, and Professional Use

Crafted from robust plastic and metal with a powder-coated, pristine surface, the Fuji AC Drive FRN0007E2S-4GB is engineered for three-phase industrial automation and precise motor speed control. Its decorated design ensures dependable, long-lasting performance under demanding conditions. Widely utilized by engineers, automation specialists, and plant operators, it guarantees efficient operation while safeguarding equipment. Perfect for both new installations and system upgrades, this variable frequency drive is engineered to meet the specific needs of professionals seeking reliability and innovation.

FOB Port, Payment Options, and Export Markets

Delivered with premium packaging to safeguard the device during transit, the Fuji AC Drive FRN0007E2S-4GB can be shipped via major FOB ports across India. Payment terms are highly flexible, supporting advance payment, LC, and other methods to suit global clients. Its main export markets include Asia, Africa, and Europe, ensuring widespread accessibility. The drive arrives in pristine condition, ready for immediate integration into your automation solutions, embodying a seamless, trustworthy purchase experience for exporters, traders, and wholesalers.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings: HND: 4, HHD: 3
Output Volt Range: 0 480V, 3-Phase, Amps, 3-Phase
HND: 6.3, HHD: 5.5
Amps, Single Phase Input, HND: Check Instruction Book
HHD: Check Instruction Book, Overload capability
HND: 120%-1 min, HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running,, HHD: 79
Nominal Input Voltage, frequency: 460, 50/60Hz
Input Volt Range: 380-480, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Resistor Type: DB2.2-4, Braking Resistor QTY.: 1
Enclosure
Standard: IP20, UL open type, Cooling: Fan cooling
Weight/Mass [lbs.(kg) 3.5(1.6),Drawing Open Chassis: ROA701505, Dimensions H x W x D (inches): 5.51 x 4.33 x 5.63
NEMA Kit:- NEMA/UL Type 1: NEMA1-12E2-24
Option Cards, Communication Card
Modbus RTU: OPC-E2-RS, DeviceNet: OPC-DEV, Profibus: OPC-PDP3 , Profinet: OPC-PRT3
CC-Link: OPC-CCL, CANOpen: OPC-COP2
Multiprotocol Ethernet Interface: OPC-PRT3
Option Card, Input/Output Digital Output interface card: OPC-DIO, Analog Input / Output Interface Card: OPC-AIO
PG Interface Card (5V): OPC-E2-PG, PG Interface Card (12V): OPC-E2-PG3

FAQ's of Fuji AC Drives, FRN0007E2S-4GB:

Q: How does the V/f (Voltage/Frequency) control method benefit industrial automation?

A: The V/f (Voltage/Frequency) control method in the Fuji AC Drive allows for smooth and precise motor speed adjustments. This boosts process efficiency, enhances equipment lifespan, and minimizes energy consumption, making it ideal for demanding automation environments.

Q: What protection features are included in the Fuji FRN0007E2S-4GB AC Drive?

A: This drive is equipped with comprehensive protection mechanisms such as overload, overcurrent, short-circuit, and overheating protection. These features help prevent equipment damage and ensure safe and reliable long-term operation.

Q: Where can the Fuji AC Drive FRN0007E2S-4GB be installed?

A: The drive supports panel mount installation within control cabinets or automation panels. Its compact rectangular design and IP20-rated enclosure make it suitable for standard industrial settings and integrations.

Q: What is the process for redeeming the braking function in this drive?

A: The Fuji drive offers both DC injection and dynamic braking functionality. These are activated automatically or via control commands, allowing for rapid motor deceleration and added safety during emergency stops.

Q: Who typically uses Fuji FRN0007E2S-4GB AC Drives and for what applications?

A: Engineers, plant operators, and automation professionals across industries rely on this drive for motor speed control, conveyor operations, and various automation processes requiring precise, efficient, and safe control.

Q: How does the communication interface enhance drive usability?

A: Equipped with RS485 and compatibility with multiple fieldbus protocols (e.g., Modbus RTU, Profibus, CANOpen), the drive enables seamless integration into modern control systems, facilitating real-time monitoring and remote management.
