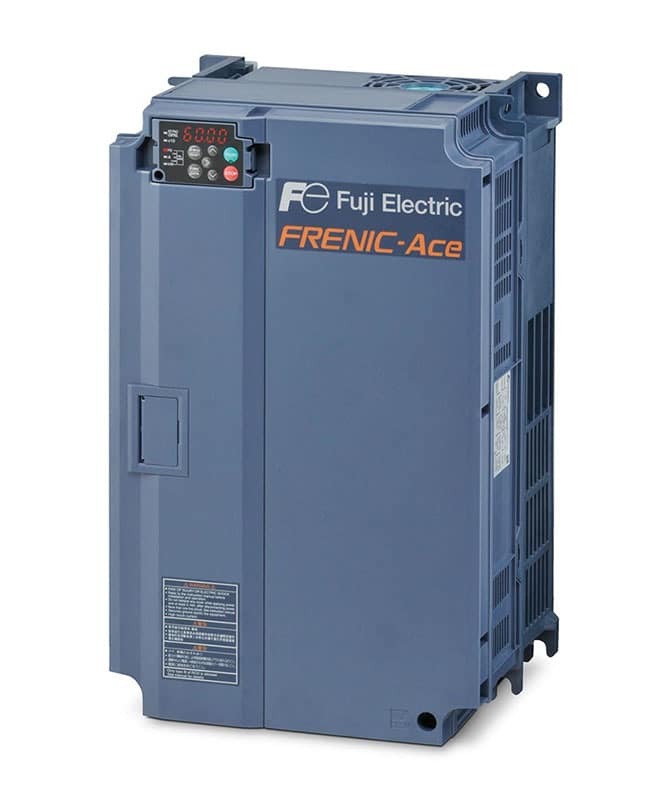

Fuji AC Drives, FRN0005E2S-7GB

Name: Fuji AC Drives, FRN0005E2S-7GB
Brand: LADDER LOGIX
Price: 22000 INR
Availability: InStock

Price 22000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0005E2S-7GB Specification

Feature
Overload Protection, Compact Design, Easy Installation

IP Rating
IP20

Insulation Material
Polycarbonate

Overheating Protection
YES

Surface Finish
Powder Coated

Connector Type
Screw Terminal

Efficiency
98%

Mounting Type
Panel Mount

Shape
Rectangular

Humidity %
Max 90% (Non-Condensing)

Operating Temperature
-10C to +50C

Power Factor
0.98

Product Type
AC Drive

Application
Industrial Automation, Speed Control

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
380-480 V AC

Energy Consumption
Low

Output Type
Digital

Color
Grey

Dimension (L*W*H)
128 x 68 x 109 mm

Weight
1.5 kg

Input Voltage
380-480 V AC

Size
Compact

Phase
Three Phase

Connection Type
Screw Terminal

Material
Plastic and Metal

No Of Poles
3

Cooling Method
Fan Cooled

Rated Power
0.75 kW (1 HP)

Model Number
FRN0005E2S-7GB

Digital Inputs
5

Motor Type Compatibility
Induction Motor

Analog Outputs
1

Altitude
Up to 1000m without derating

Storage Temperature
-20°C to +65°C

Braking Unit
Built-in

Analog Inputs
2

Start Torque
150% at 1Hz

Display Type
LED

Control Method
V/F (Voltage/Frequency) Control

Digital Outputs
1 relay

About Fuji AC Drives, FRN0005E2S-7GB

Experience a hot deal with our in-demand Fuji AC Drives, model FRN0005E2S-7GB. This spectacular unit packs first-rate features such as a grand 0.75 kW (1 HP) power, advanced V/F control, and robust overload protection. Designed for industrial automation, it boasts a compact, panel-mount shape and a stylish grey, powder-coated surface. Enjoy 98% efficiency, low energy consumption, and superior durability, making it a top purchase for any business. Its built-in braking unit, LED display, and effortless installation ensure this model stands out as a phenomenal choice for suppliers, traders, and wholesalers across India.

Why Choose Fuji AC Drives, FRN0005E2S-7GB?

The Fuji FRN0005E2S-7GB AC Drive excels with its competitive advantages such as compact design, high overload capability (150% at 1Hz), and outstanding 98% efficiency. The device features advanced safety with overload and overheat protection, a built-in braking unit, and an easy-to-read LED display. Its quick installation and robust build using quality plastic and metal ensure dependability in demanding industrial automation settings. Engineered for precision, it supports induction motors with grand speed control for optimal performance.

Avail Samples, Certifications & Export Advantages

Suppliers can access samples of the Fuji AC Drive, FRN0005E2S-7GB for evaluation, with direct supply at the lowest price for bulk orders. Each unit comes with essential certifications, ensuring international compliance and reliability. The product is swiftly handed over, supporting quick integration. Main export markets include Asia, Africa, and the Middle East, making this drive a preferred choice for global traders, exporters, and industrial wholesalers seeking quality and value in automation solutions.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND:
HHD: 1
Output Volt Range: 0 240V, 3-Phase
Amps, 3-Phase
HND:
HHD:
Amps, Single Phase Input
HND:
HHD: 5
Overload capability
HND:
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND:
HHD: 55
DCR
DCR PN
DCR Watt Loss:
Nominal Input Voltage, frequency: 230, 50/60Hz
Input Volt Range: 200-240, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type:
Braking Unit QTY.:
Braking Resistor Type: DB0.75-2
Braking Resistor QTY.: 1

FAQs of Fuji AC Drives, FRN0005E2S-7GB:

Q: How does the Fuji FRN0005E2S-7GB ensure protection and efficiency during operation?

A: The drive incorporates overload and overheating protection, has a built-in braking unit, supports fan cooling, and boasts a high efficiency of 98%, ensuring consistent and secure performance in demanding environments.

Q: What are the main features that distinguish this drive in industrial automation?

A: This model offers a first-rate V/F control method, reliable start torque of 150% at 1Hz, digital and analog input flexibility, IP20 protection, compact dimension, and easy panel mounting, making it highly competitive for automation tasks.

Q: Where can businesses purchase and receive the Fuji FRN0005E2S-7GB with sample access?

A: Suppliers and traders in India and major export markets such as Asia, Africa, and the Middle East can procure this drive, with samples available for evaluation prior to bulk purchase.

Q: What types of motors and applications is this drive compatible with?

A: The FRN0005E2S-7GB supports three-phase induction motors and is ideal for speed control, automation systems, and industrial machinery needing precise digital output and energy efficiency.

Q: How is installation and connection facilitated for this model?

A: Installation is straightforward due to its compact panel-mount design and screw terminal connections, making the process quick and user-friendly for technicians and engineers.

Q: What is the benefit of the built-in braking unit on this AC drive?

A: The integrated braking unit ensures smooth deceleration under load, enhancing operational safety and extending equipment longevity in industrial applications.
