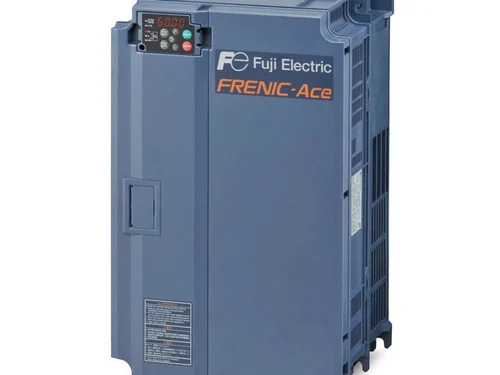

Fuji AC Drives, FRN0001E2S-2GB

Name: Fuji AC Drives, FRN0001E2S-2GB
Brand: LADDER LOGIX
Price: 26000 INR
Availability: InStock

Price 26000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0001E2S-2GB Specification

Mounting Type
Panel Mount

Insulation Material
PVC

Power Factor
>0.95

Surface Finish
Gloss

Overheating Protection
YES

Operating Temperature
-10C to +50C

Shape
Rectangular

IP Rating
IP20

Connector Type
Screw Terminal

Efficiency
>85%

Feature
Compact Size, V/F Control

Humidity %
<95% RH (Non-Condensing)

Product Type
AC Drive

Application
Industrial Motor Control

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
200-240 V AC

Energy Consumption
Low

Output Type
PWM

Color
Grey

Dimension (L*W*H)
128 x 68 x 109 mm

Weight
0.8 kg

Size
Standard

Input Voltage
200-240 V

Phase
Single Phase

Connection Type
Screw Terminal

Material
Plastic/Aluminum

Output Current
0.8 A

Altitude
Up to 1000 m without derating

Control Method
V/F (Voltage/Frequency) Control

Display Type
LED Digital Display

Communication Interface
RS485 (Optional)

Noise Level
<60 dB

Starting Torque
150% at 1 Hz

Motor Capacity
0.1 kW (1/8 HP)

Cooling System
Natural Air

Maximum Output Frequency
400 Hz

Model No.
FRN0001E2S-2GB

About Fuji AC Drives, FRN0001E2S-2GB

Pick Yours among the elite range of Fuji AC Drives - the in-demand FRN0001E2S-2GB. Engineered for pivotal industrial motor control, this top-notch drive boasts a lofty efficiency of over 85%. With a compact, robust design, it delivers 0.1 kW (1/8 HP) of power, V/F control method, and a high starting torque of 150% at 1Hz. The LED digital display ensures precision monitoring, while its IP20 protection, advanced panel mount design, and natural air cooling underline reliability. Ideal for applications demanding outstanding performance, safety, and low energy consumption.

Application, Surface & Advantages of Fuji AC Drives FRN0001E2S-2GB

Fuji AC Drives FRN0001E2S-2GB shine in industrial motor control, offering a standard-sized, compact unit suitable for surface or panel mounting in various environments. Its competitive advantages are highlighted by elevated energy efficiency, resilient overheating protection, and pivotal voltage/frequency control for steady performance. This drive is ideal for users seeking reliability and versatility in tough operational conditions, supporting both general and specialized applications with its robust build and impressive torque.

FOB Port, Markets & Sales Offers for Fuji AC Drives FRN0001E2S-2GB

We offer the Fuji AC Drives FRN0001E2S-2GB with expedient dispatching from major Indian FOB ports. Our competitive sale prices appeal to a wide spectrum of industrial users. Serving both the main domestic market across India and export markets globally, we prioritize timely delivery and meticulous packaging for secure transit. Buyers benefit from trusted distribution, consistent availability, and excellent after-sales service, making this drive a favored choice for exporters, suppliers, and wholesalers.

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND: 1/4
HHD: 1/8
Output Volt Range: 0 240V, 3-Phase
Amps, 3-Phase
HND: 1.3
HHD: 0.8
Amps, Single Phase Input
HND: Check Instruction Book
HHD: Check Instruction Book
Overload capability
HND: 120%-1 min
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND: 19
HHD: 16
DCR
DCR PN
DCR Watt Loss:
Nominal Input Voltage, frequency: 230, 50/60Hz
Input Volt Range: 200-240, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type:
Braking Unit QTY.:
Braking Resistor Type: DB0.75-2
Braking Resistor QTY.: 1

FAQ's of Fuji AC Drives, FRN0001E2S-2GB:

Q: How does the Fuji FRN0001E2S-2GB drive control motor speed and torque?

A: The FRN0001E2S-2GB employs the V/F (Voltage/Frequency) control method, ensuring optimal speed regulation and torque, with starting torque reaching 150% at 1 Hz for enhanced performance during demanding starts.

Q: What is the process for mounting and integrating this drive into a control panel?

A: Mounting is straightforward, using its panel-mount design and screw terminals for secure connections. Following the user manual ensures correct installation, integration with digital and analog inputs, and reliable operation in various industrial setups.

Q: Where can I use the Fuji AC Drive FRN0001E2S-2GB most effectively?

A: This drive excels in industrial environments requiring compact, reliable AC motor control, such as conveyor systems, pumps, and fans, where precise operation and efficiency are critical.

Q: When is the best time to dispatch orders for domestic or export sales?

A: Products are typically dispatched promptly after order confirmation. We coordinate shipping from primary Indian FOB ports to ensure timely delivery to both domestic and international customers.

Q: What are the main benefits of choosing this Fuji drive over others?

A: It offers high energy efficiency, a compact size, robust protection features, and user-friendly digital display, making it a top-tier selection for diverse industrial tasks.
