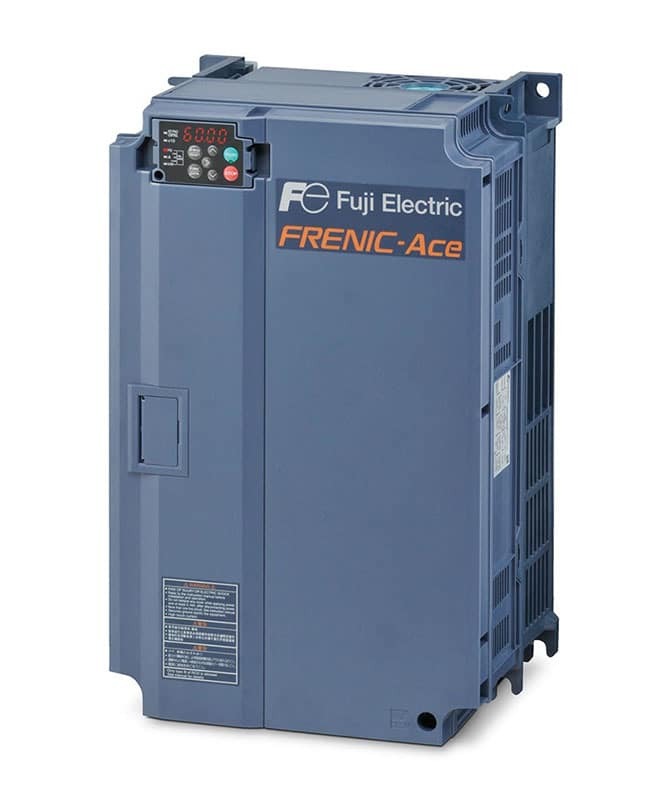

Fuji AC Drives, FRN0520E2S-4GB

Name: Fuji AC Drives, FRN0520E2S-4GB
Brand: LADDER LOGIX
Price: 904000 INR
Availability: InStock

Price 904000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Fuji AC Drives, FRN0520E2S-4GB Specification

Humidity %
5 - 95% (non-condensing)

Power Factor
>0.96

Shape
Rectangular

Mounting Type
Panel Mounted

Overheating Protection
YES

Efficiency
97%

IP Rating
IP20

Feature
Digital Display, Easy Programming

Operating Temperature
-10C to +50C

Connector Type
Terminal Block

Surface Finish
Powder Coated

Insulation Material
Polycarbonate

Product Type
AC Drive

Application
Industrial Automation, Motor Speed Control

Protection Level
Overload, Overcurrent, Short Circuit

Frequency (MHz)
0.5 - 400 Hz

Rated Voltage
380 - 480 V AC

Energy Consumption
High Efficiency

Output Type
Three Phase Output

Color
Grey

Dimension (L*W*H)
270 x 180 x 150 mm

Weight
6 kg

Size
Standard

Phase
Three Phase

Input Voltage
380-480V AC

Connection Type
Screw Terminal

Material
Metal Body

No Of Poles
3

Cooling Method
Forced Air Cooling

Enclosure
Metal Enclosure

Display Type
LCD Multi-function Panel

Starting Torque
150% at 1 Hz

Output Current
52A

Noise Level
<70 dBA

Control Method
V/f Control, Vector Control

Overload Capacity
150% for 60s

Programming Interface
Keypad / RS485 Modbus

Braking Unit
Built-in

Model Number
FRN0520E2S-4GB

Altitude
Up to 1000 m above sea level without derating

Communication Port
RS485

About Fuji AC Drives, FRN0520E2S-4GB

The Fuji AC Drives, FRN0520E2S-4GB, are preeminent in the field of industrial automation, earning recognition as a best-seller among exporters, suppliers, and traders across India. Renowned for its dominant performance, this model features V/f and Vector Control methods, a robust 52A output current, and a top-notch built-in braking unit. Users redeem terrific value with high efficiency (97%), LCD multi-function panel, digital display, and seamless Modbus RS485 connectivity. Buy online for a solution that guarantees optimal motor speed control, dependable protection, and easy panel mounting.

Material Strength & Distinctive Features of Fuji AC Drives

Constructed with a durable metal body and powder-coated surface, the Fuji AC Drives, FRN0520E2S-4GB offers outstanding longevity and resilience. Extra features include digital display for operational clarity, easy programming via keypad or RS485, and built-in overload, overcurrent, and short-circuit protection. It is used extensively in industrial automation and motor speed control applications, ensuring precision, stable output, and long-lasting reliability under demanding conditions.

Export Market Reach and Certifications for Fuji AC Drives

Fuji AC Drives, FRN0520E2S-4GB are shipped from India's major FOB ports and cater to international export markets demanding high-quality industrial goods. Shipment is managed with utmost care to ensure goods transport efficiency and safety. The drives come with trusted certifications and comply with global industry standards, guaranteeing their performance, safety, and reliability for wholesalers, traders, and exporters engaging in worldwide distribution.

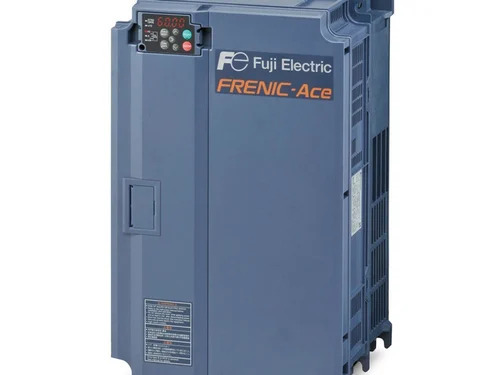

Product Series: FRENIC-Ace (E2)
Family Series: Fuji Drives, Ace Series
HP Ratings
HND: 350
HHD: 300
Output Volt Range: 0 480V, 3-Phase
Amps, 3-Phase
HND: 415
HHD: 377
Amps, Single Phase Input
HND: Check Instruction Book
HHD: Check Instruction Book
Overload capability
HND: 120%-1 min
HHD: 150%-1 min, 200%-0.5 s
Watt loss @ Running
HND: 4250
HHD: 3850
DCR
DCR PN DCR4-220C
DCR Watt Loss: 231
Nominal Input Voltage, frequency: 460, 50/60Hz
Input Volt Range: 380-480, +10 to -15%
Max output Frequency: 500 Hz
Digital Input: 5 (7)
Analog Inputs: 2
Transistor outputs: 2
General purpose relay output: 1
Alarm relay output: 1
Braking Unit and Braking Resistor
Braking Unit Type: BU220-4C
Braking Unit QTY.: 1
Braking Resistor Type: DB200-4C
Braking Resistor QTY.: 1
Enclosure
Standard: IP20, UL open type
Cooling: Fan cooling
Weight/Mass [lbs.(kg) 286(130)
Drawing Open Chassis: ROA701518
Dimensions H x W x D (inches): 39.37 x 27.02 x 14.41
NEMA Kit
NEMA/UL Type 1: NEMA1-590E2-4
Option Cards, Communication Card
Modbus RTU: OPC-E2-RS
DeviceNet: OPC-DEV
Profibus: OPC-PDP3
Profinet: OPC-PRT3
CC-Link: OPC-CCL
CANOpen: OPC-COP2
Multiprotocol Ethernet Interface: OPC-PRT3
Option Card, Input/Output
Digital Output interface card: OPC-DIO
Analog Input / Output Interface Card: OPC-AIO
PG Interface Card (5V): OPC-E2-PG
PG Interface Card (12V): OPC-E2-PG3

FAQ's of Fuji AC Drives, FRN0520E2S-4GB:

Q: How do I program the Fuji AC Drives, FRN0520E2S-4GB?

A: Programming is straightforward using the multi-function LCD panel and keypad interface or through RS485 Modbus communication, allowing for rapid setup and adjustments.

Q: What is the recommended application for this AC drive model?

A: It is ideally suited for industrial automation and precise motor speed control applications, where high efficiency, overload protection, and reliable performance are critical.

Q: When should the AC Drive's overload capacity be utilized?

A: The overload capacity (150% for 60s) should be employed during initial starts, heavy torque requirements, or brief operational surges to safeguard both the drive and connected motors.

Q: Where can I buy the Fuji AC Drives, FRN0520E2S-4GB online?

A: You can buy this best-selling drive online from certified suppliers, exporters, and wholesalers, particularly those serving the Indian industrial market and shipping internationally.

Q: What benefits does the metal enclosure provide for the drive?

A: The robust metal enclosure ensures enhanced durability, efficient heat dissipation with forced air cooling, and comprehensive protection in challenging industrial environments.

Q: How does the Fuji AC Drive ensure efficient goods transport during shipment?

A: Each unit is securely packed and shipped from major Indian FOB ports, minimizing transit damage and guaranteeing safe goods transport to export markets worldwide.
