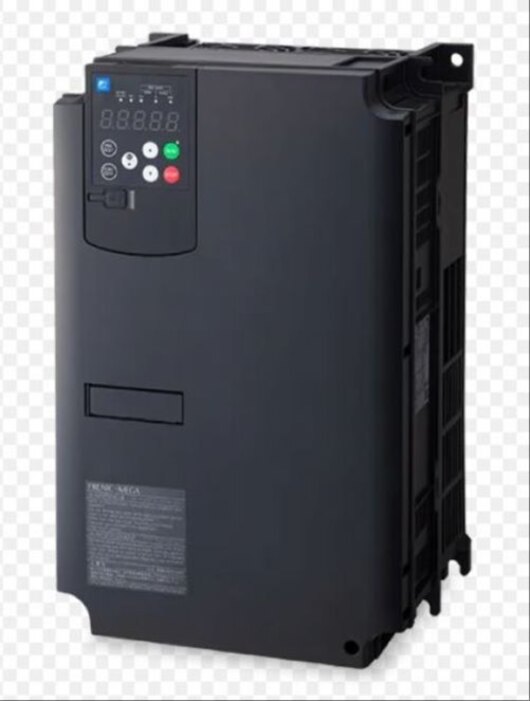

Fuji AC Drive FRN0590E2S- 4GB

Name: Fuji AC Drive FRN0590E2S- 4GB
Brand: LADDER LOGIX
Price: 16400 INR
Availability: InStock

Price 16400 INR/ Box

Get a Price/Quote

MOQ : 1 Box

Fuji AC Drive FRN0590E2S- 4GB Specification

IP Rating
IP20

Shape
Rectangular

Mounting Type
Wall Mount

Power Factor
0.98

Humidity %
0% to 95% RH (non-condensing)

Connector Type
Screw Terminal

Feature
Overload Protection, User Friendly Interface

Insulation Material
High Grade Insulation

Operating Temperature
-10C to +50C

Efficiency
Above 95%

Overheating Protection
YES

Surface Finish
Powder Coated

Product Type
AC Drive

Application
Industrial Automation, Motor Control

Protection Level
IP20

Frequency (MHz)
50/60 Hz

Rated Voltage
400V AC

Energy Consumption
High Efficiency

Output Type
3-Phase Output

Color
Black & Grey

Dimension (L*W*H)
350 x 180 x 170 mm

Weight
11 kg

Size
Standard

Input Voltage
380-480V AC

Phase
Three Phase

Material
Plastic, Metal

Connection Type
Terminal

Control Method
V/f Control, Sensorless Vector Control

Braking Unit
Built-In

Rated Output Current
59A

Storage Temperature
-20°C to +65°C

Model Number
FRN0590E2S-4GB

Standards
IEC/EN Standards

Cooling
Forced Air Cooling

Enclosure
Open Type

Communication Protocols
RS485 (MODBUS-RTU)

Display Type
Digital LED

Fuji AC Drive FRN0590E2S- 4GB Trade Information

Minimum Order Quantity
1 Box

Main Domestic Market
All India

About Fuji AC Drive FRN0590E2S- 4GB

Experience the elite performance of the Fuji AC Drive FRN0590E2S-4GB, a superlative solution crafted for demanding industrial automation. This drive embodies magnificent value with its robust 59A output and advanced control methods including V/f and sensorless vector control. Engineered with a digital LED display, integrated braking unit, and RS485 (MODBUS-RTU) protocols, it promotes unparalleled efficiency and seamless operation. Featuring overload and overheating protection, superior energy consumption, and an IP20-rated enclosure, this promotion-worthy product delivers reliability and remarkable utility for industrial applications. Available in black & grey, it is a distinguished choice for professionals seeking excellence.

Versatile Application and Outstanding Features

The Fuji AC Drive FRN0590E2S-4GB is ideal for use in a wide range of industrial automation and motor control applications. With features such as digital LED display, built-in braking unit, user-friendly interface, and advanced V/f and open-loop vector control, it stands out as a reliable partner for demanding environments. The drive's IP20 protection and forced air cooling ensure durability and optimal performance on factory floors and in control panels.

Swift Delivery, Global Supply, and Pricing Information

Benefit from prompt delivery and competitive asking prices when ordering the Fuji AC Drive FRN0590E2S-4GB. Our supply chain reaches both main export markets, including various international destinations, and the domestic market across India. We pride ourselves on offering consistent supply to traders, exporters, wholesalers, and industrial suppliers nationwide, ensuring that you receive elite components quickly to suit urgent project requirements.

Manufacturer Part Number	FRN0590E2S-4GB
Item Number	FRN0590E2S-4GB
Manufacturer	Fuji
Product Series	Ace
Family Series	Fuji Drives, Ace Series
Input Phase	3
Input Range Voltage (AC)	380480
HP (Constant Torque Rating)	350
HP (Variable Torque Rating)	450
Current (Constant Torque Rating)	415
Current (Variable Torque Rating)	520
Braking Type	DC Injection;Dynamic Braking Transistor Included
Closed Loop	Optional
AC Line Regenerative	No
Operator Controls	Keypad Included
IP Rating	IP20
Max Frequency	500
Motor Control-Max Level	Open Loop Vector (Sensorless Vector)
Mounting	Panel
Package	ACE0520-4/0590-4
Dynamic Braking Trans	Included
Comments	Safe Torque Off, permanent magnet motor control, customizable logic, built in dual RS485 ports.
Height	39.37 Inches
Width	27.02 Inches
Depth	14.41 Inches
Net Weight	0 lbs
Gross Weight	0 lbs

FAQ's of Fuji AC Drive FRN0590E2S- 4GB:

Q: How does the Fuji AC Drive FRN0590E2S-4GB enhance industrial automation?

A: The Fuji AC Drive FRN0590E2S-4GB integrates superlative features like sensorless vector control, overload protection, and efficient energy consumption to provide precise motor control, reliable operation, and optimal performance in various industrial automation systems.

Q: What are the main benefits of using the FRN0590E2S-4GB in your application?

A: This drive offers magnificent performance through its high efficiency (above 95%), advanced protection features such as safe torque off and overheating protection, and a user-friendly digital interface, making it ideal for demanding and continuous-use scenarios.

Q: Where is the Fuji FRN0590E2S-4GB most suitable for installation?

A: The FRN0590E2S-4GB is suitable for wall-mounted setups within control panels, particularly in industrial sites requiring three-phase motor control like manufacturing facilities and process automation plants.

Q: What communication protocols are supported by this Fuji AC Drive?

A: It supports RS485 MODBUS-RTU communication protocols, allowing seamless integration into modern automation and monitoring systems.

Q: How does the protection level of IP20 benefit the user?

A: With IP20 protection, the drive is safeguarded against finger access and solid objects, ensuring safety during operation and longevity in controlled indoor industrial environments.

Q: What is the process for ordering and delivery for domestic and export markets?

A: Orders can be placed directly through our network of suppliers and exporters. Fast delivery is ensured both in the Indian domestic market and for international customers, with competitive asking prices and dependable support.
