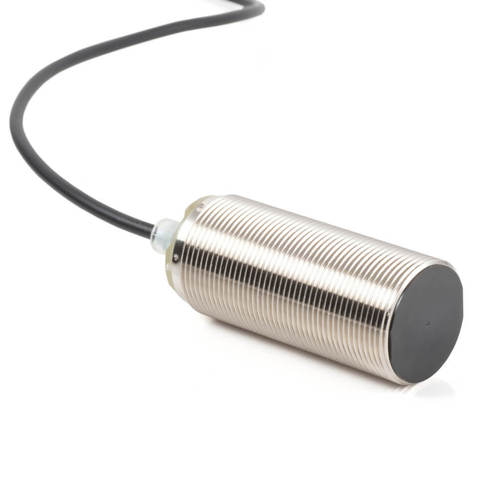

E2B-M18LS08-M1-C1 NPN-NO, E2B-M18LS08-M1-B1 PNP-NO,

About E2B-M18LS08-M1-C1 NPN-NO, E2B-M18LS08-M1-B1 PNP-NO,

Description & Key Features:

• Type: Inductive proximity sensor detects metal objects without contact using electromagnetic induction.

• Output Configuration: NPN, Normally Open (NO), 3-wire DC output.

• Sensing Distance: 8 mm (typical range at which it detects a target).

• Thread Size / Housing: M18 cylindrical, shielded, long body design for robust industrial mounting.

• Connection: M12 connector type for quick wiring.

• Supply Voltage: 1030 V DC, standard DC industrial supply.

• Operation: NO means it conducts output only when target present near sensor face.

• Durability: Built for IP67 dust/water resistance; works in typical factory temps (-25 C to +70 C).

• Typical Use: Metal object detection in machinery, conveyors, automated assembly lines where NPN

•


• Inductive Proximity Sensor E2BM18LS08M1B1 PNP, NO Inductive Proximity Sensor

  Description & Key Features:

  • Type: Inductive cylindrical proximity sensor same detection principle as above.

  • Output Configuration: PNP, Normally Open (NO), 3-wire DC output.

  • Sensing Distance: 8 mm typical sensing range.

  • Thread Size / Housing: M18, shielded, long barrel brass body for industrial installations.

  • Connection: M12 connector interface.

  • Supply Voltage: 1030 V DC.

  • Protection & Environment: IP67 rating (dust-tight and water-proof); typical range 25 C to +70 C.

  • Indicator: 360 visible yellow LED to show output status.

  • Typical Use: Suitable for automation systems needing PNP logic, such as many PLC inputs or PNP-type load circuits.

Size	M18
Mounting type	Quasi-flush
Sensing distance	8 mm
Output type	NPN
Operation mode	NO
Connection method	Connector M12
Material housing	Brass, nickel plated
Cable specifications	-
Overall length	81 mm
Thread length	61 mm
Degree of protection (IP)	IP67

Reliable Sensing for Industrial Automation

Optimize machinery safety and operational efficiency with these durable inductive proximity sensors. Engineered to detect metal targets at distances up to 8 mm, they effortlessly handle diverse industrial environments. Their robust, shielded nickel-brass bodies offer exceptional resilience, while IP67 protection ensures performance even in challenging conditions.


Easy Installation and Flexible Application

These sensors feature standardized M18 sizing and M12 connectors, enabling hassle-free integration into new or existing setups. Compatible with both NPN and PNP outputs, they support a wide range of control systems. Their ability to operate in varied phases and environments makes them ideal for multiple industrial applications.
